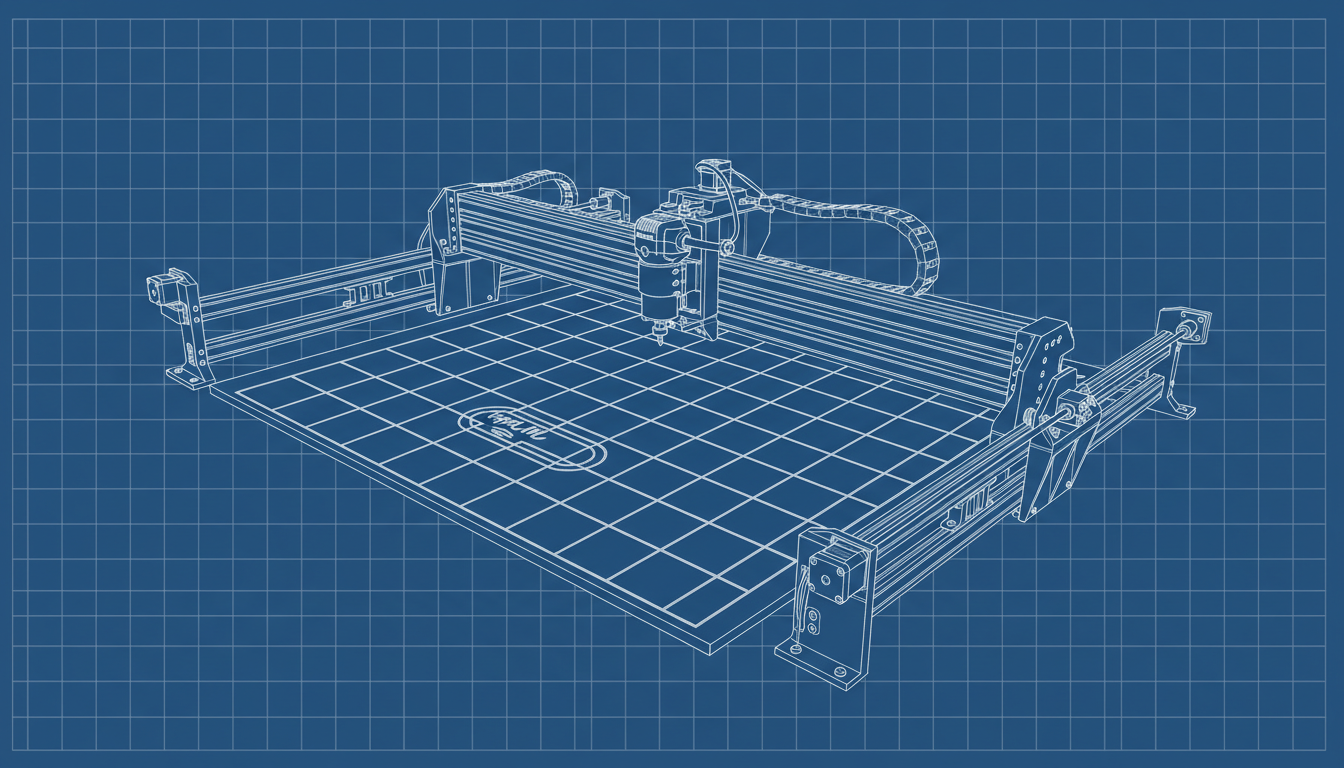

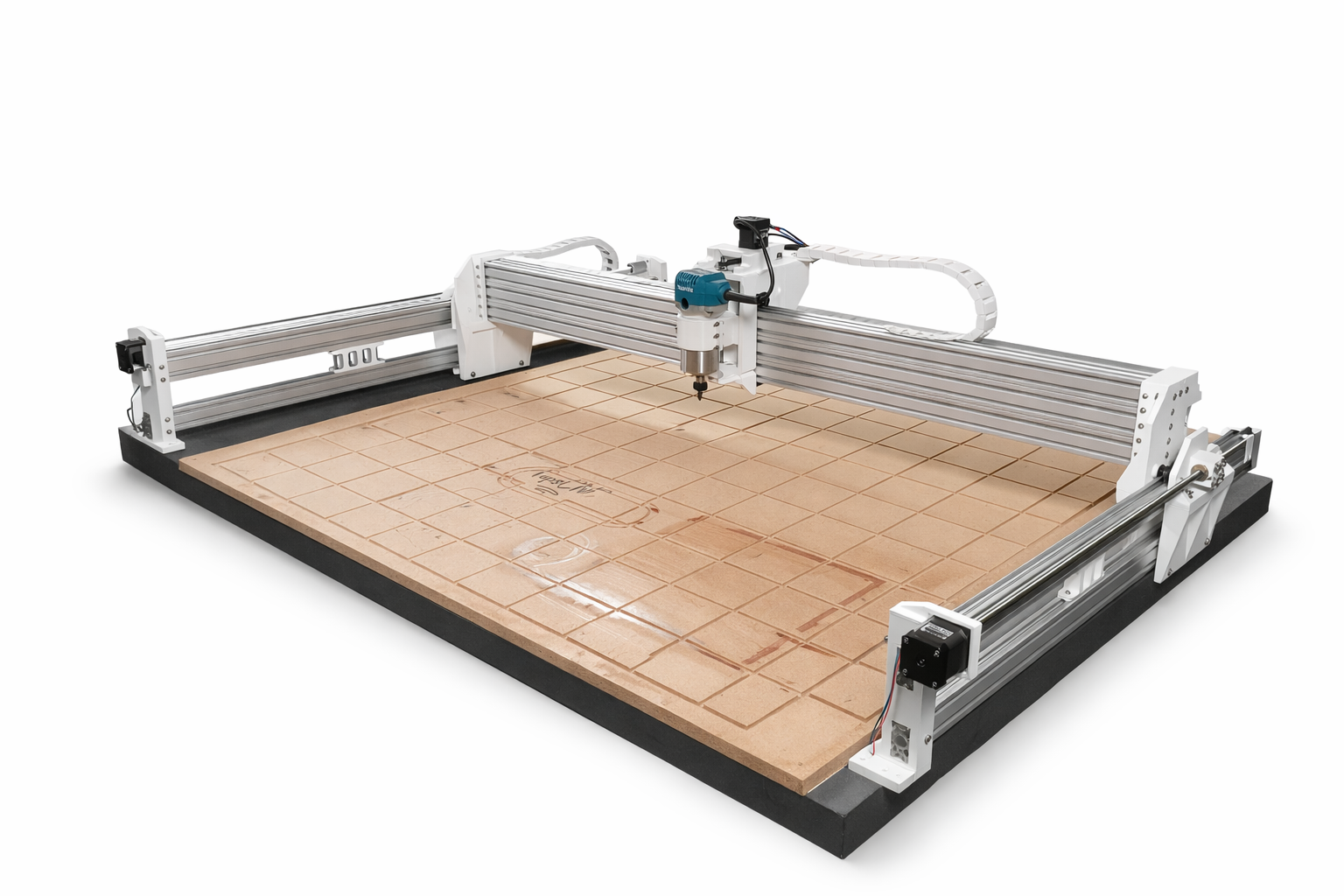

TopsCNC HEAVY
✍️ Topsie
📅 18 February 2020
👀 200448 vues
❤️ 1109 likes
🔒 Log in to view and download STL files for this design.
Log inList of components
All parts must be printed only once, except for those listed below:
3D printing to be printed multiple times
| Nom | Qté | Notes |
|---|---|---|
| FrontLeft_Or_RearRight_Feet.stl | 2 | |
| FrontRight_Or_RearLeft_Feet.stl | 2 | |
| Wheel_Spacer.stl | 20 | |
| BetweenWheel_Spacer.stl | 8 | |
| YAxis_Bottom.stl | 4 | |
| CBeam_Bracket.stl | 2 | |
| DoubleYRail_Bracket.stl | 4 | |
| T8Nut_Holder.stl | 3 | |
| Dragchain | Autant que necessaire |
For the parts to buy:
Item to purchase
| Nom | Qté | Notes |
|---|---|---|
| Nema17 motors | 4 | |
| Rigid couplings 8 mm → 5 mm | 3 | |
| V-Slot 2040 - X axis | 5 | |
| V-Slot 2040 - Y axis | 4 | |
| Trapezoidal nut T8 (length of the VSlot X) | 1 | |
| Trapezoidal screw T8 (length of the VSlot Y) | 2 | |
| Nylon wheels with 5 mm bearings (like on 3D printers) | 20 | |
| Chrome smooth rods Ø8 mm — 220 mm | 2 | |
| Trapezoidal screw Ø8 mm — 200 mm | 1 | |
| LM8UU bearings | 4 | |
| Standard bearings Ø8 mm (type 608ZZ) | 4 | |
| GT2 pulley 20 teeth — Ø5 mm internal | 1 | |
| GT2 pulley 20 teeth — Ø8 mm internal | 1 | |
| GT2 closed belt — 200 mm to 220 mm | 1 | |
| 12V 5A power supply | 1 | |
| Arduino (with GRBL) | 1 | |
| CNC Shield V3 | 1 | |
| Makita RT0700C | 1 | |
| Bearing housing (with stop screw) | 1 |
Fasteners
| Nom | Qté | Notes |
|---|---|---|
| M6 × 30 mm | 12 | |
| M6 × 35 mm | 4 | |
| M5 × 50 mm | 8 | |
| M5 × 20 ~ 25 mm | 20 | |
| M5 × 40 mm | 12 | |
| M5 × 80 mm | 4 | |
| M4 × 16 mm | 100 | |
| M4 × 10 mm | 8 | |
| M3 × 15 mm | 16 | |
| M4 nuts for VSlot | 100 | |
| Wood screw 4 mm | 20 |
For each line of screws, also think about the nuts and a few washers.
M6 × 35 mm is VERY important for screwing the spindle mount onto the Z carriage, if the screws exceed this, it blocks the carriage.
M6 × 40 mm very important for the T8 nut mount on the X & Y carriages.
Recommended printing parameters
Suggested settings for printing the parts (although not mandatory):
- Layer height: 0.2 mm (0.3 mm possible)
- Infill: 50% (cubic)
- Walls: 5 perimeter lines
Where to buy the components
I find most of the parts on Amazon (the links in the materials list) except for:
- The long T8 trapezoidal screws: I buy them on AliExpress.
- The aluminum profiles: I buy them from Systeal or Dold-mechatronik.
- For the router/spindle, I use the Makita RT0700C, but there is also the Katsu 101750, less efficient and less precise but half the price of the Makita.
