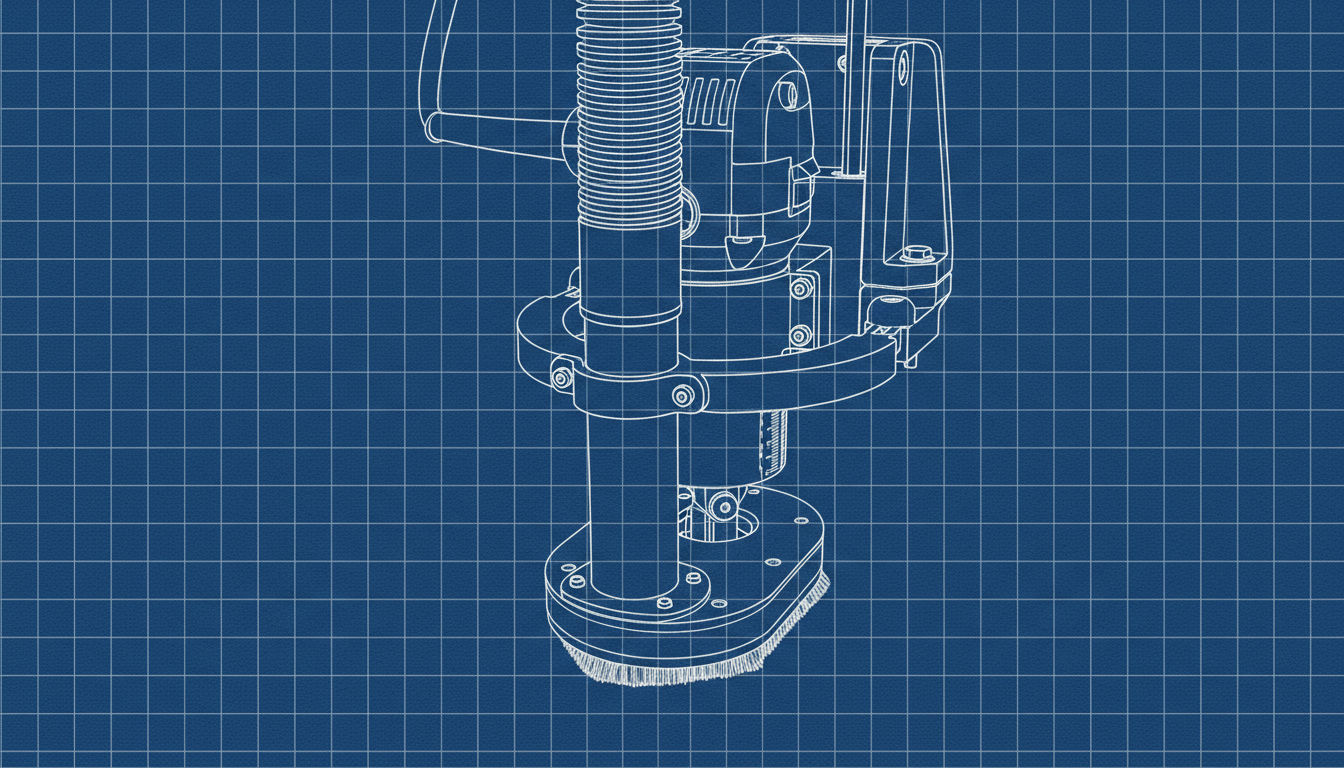

TopsCNC Heavy : MoreDepth

✍️ Topsie 📅 10 May 2020 👀 15100 vues ❤️ 123 likes

🔒 Log in to view and download STL files for this design.

Upgrade "MoreDepth" of the TopsCNC Heavy.

The modification allows for an increase of 5 cm in depth on the Z-axis.

This version is compatible with all TopsCNC Heavy versions (Normal, Nema23, etc.).

I initially went for a complicated approach, but ultimately I returned to a simple modification that involves these two parts:

- XAxis_FrontBottom.stl becomes XAxis_FrontBottom_MoreDepth.stl

- XAxis_FrontTop.stl becomes XAxis_FrontTop_MoreDepth.stl

09/07/2020 :

I added the suction support for the "MoreDepth" version.
